R$ 488,49

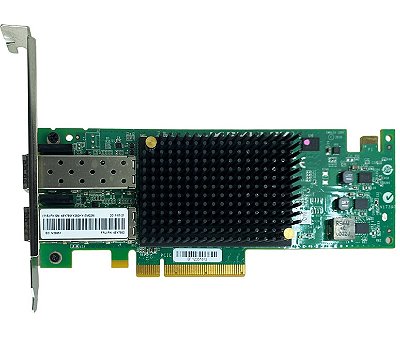

Placa de Rede 10GB Dual Port 10GBase-CR OCE11102-FX Emulex
- Perfil Alto
- Não Acompanha Gbic
Fibre Channel over Ethernet (FCoE) PCI-E x8, Emulex OneConnect OCe11102-FX, Suporta Protocolos FCoE
OCE11102-FX EMULEX Placa de Rede 10GB Dual Port 10GBase-CR
ANSI INCITS T11 FC-BB-5 2.0, FC-PI-2, FC-GS-4, FC-TAPE, and FCP-3
PCI Express base spec 2.0, PCI Bus Power Management Interface, rev. 1.2, Advanced Error Reporting (AER)
IEEE 802.3ae (10GBASE Ethernet Ports), IEEE 802.1q (Virtual LANs), IEEE 802.3ad (Link Aggregation), IEEE 802.3x (Flow Control), IEEE 802.1p (Quality/Class of Service)
IEEE 802.1Qaz (Enhanced Transmission Selection), IEEE 802.1Qaz (Data Center Bridging Capabilities Exchange), IEEE 802.1Qbb (Priority-based Flow Control)
IEEE 802.1ab (Link Layer Discovery Protocol), PHP hot plug-hot swap.
Architecture
Dual-channel, 10Gb/s Ethernet Link speed
PCIe Express 2.0 (x8, 5GT/s), MSI-X support
Integrated data buffer and code space memory
FCoE Features
Common driver for UCNAs and HBAs
64 N_port ID Virtualization (NPIV) interfaces (total for adapter)
Support for FIP and FCoE Ether Types
Fabric Provided MAC Addressing (FPMA) support
1024 concurrent port logins (RPIs) per port
1024 active exchange (XRIs) per Port
iSCSI Features
IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload (LSO); Large Receive Offload; Receive Side Scaling (RSS); TCP Segmentation Offload (TSO); IPv4 TCP Chimney Offload
VLAN insertion and extraction
Jumbo frames up to 9000 Bytes
Preboot eXecution Environment (PXE) 2.0 network boot support
Interrupt coalescing
Load balancing and failover support including adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming support and IEEE 802.3ad
Comprehensive OS Support:
Windows Server, VMware ESX, Red Hat Enterprise Linux Server, Novell SUSE® Linux Enterprise Server, Oracle Solaris (FCoE only), CentOS
Hardware Environments:
x86, x64 servers
Sun SPARC servers
Interconnect
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
UL recognized to UL 60950-1 2nd edition
CUR recognized to CSA22.2, No. 60950-1-07
Bauart-certified to EN60950-1 2nd edition
FCC Rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI (Japan), Class A
KCC (Korea), Class A
BSMI (Taiwan), Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
Perfil: Alto
- Perfil Alto
- Não Acompanha Gbic
Fibre Channel over Ethernet (FCoE) PCI-E x8, Emulex OneConnect OCe11102-FX, Suporta Protocolos FCoE
OCE11102-FX EMULEX Placa de Rede 10GB Dual Port 10GBase-CR
ANSI INCITS T11 FC-BB-5 2.0, FC-PI-2, FC-GS-4, FC-TAPE, and FCP-3
PCI Express base spec 2.0, PCI Bus Power Management Interface, rev. 1.2, Advanced Error Reporting (AER)
IEEE 802.3ae (10GBASE Ethernet Ports), IEEE 802.1q (Virtual LANs), IEEE 802.3ad (Link Aggregation), IEEE 802.3x (Flow Control), IEEE 802.1p (Quality/Class of Service)
IEEE 802.1Qaz (Enhanced Transmission Selection), IEEE 802.1Qaz (Data Center Bridging Capabilities Exchange), IEEE 802.1Qbb (Priority-based Flow Control)
IEEE 802.1ab (Link Layer Discovery Protocol), PHP hot plug-hot swap.
Architecture
Dual-channel, 10Gb/s Ethernet Link speed
PCIe Express 2.0 (x8, 5GT/s), MSI-X support
Integrated data buffer and code space memory
FCoE Features
Common driver for UCNAs and HBAs
64 N_port ID Virtualization (NPIV) interfaces (total for adapter)
Support for FIP and FCoE Ether Types
Fabric Provided MAC Addressing (FPMA) support
1024 concurrent port logins (RPIs) per port
1024 active exchange (XRIs) per Port
iSCSI Features
IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload (LSO); Large Receive Offload; Receive Side Scaling (RSS); TCP Segmentation Offload (TSO); IPv4 TCP Chimney Offload
VLAN insertion and extraction
Jumbo frames up to 9000 Bytes
Preboot eXecution Environment (PXE) 2.0 network boot support
Interrupt coalescing
Load balancing and failover support including adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming support and IEEE 802.3ad
Comprehensive OS Support:
Windows Server, VMware ESX, Red Hat Enterprise Linux Server, Novell SUSE® Linux Enterprise Server, Oracle Solaris (FCoE only), CentOS
Hardware Environments:
x86, x64 servers
Sun SPARC servers
Interconnect
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
UL recognized to UL 60950-1 2nd edition
CUR recognized to CSA22.2, No. 60950-1-07
Bauart-certified to EN60950-1 2nd edition
FCC Rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI (Japan), Class A
KCC (Korea), Class A
BSMI (Taiwan), Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
Perfil: Alto
